SMPM Cable Assemblies Φ.047 Cable types (Flexible, Semi-Rigid, Semi-Flexible)

Part No: FX047-PF1KM1-4inch

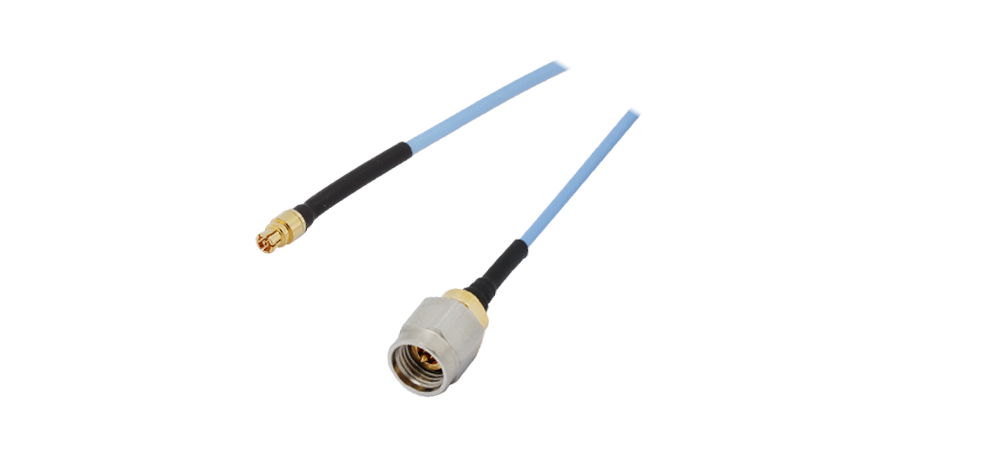

FX047 Cable Assembly, 40 GHz, SMPM(F), 2.92mm(M), 4inch

  • WithWave offers SMPM Cable Assemblies with 0.047’’cable diameter (Flexible, Semi-Rigid & Semi-Flexible) for various kinds of interconnection solutions such as High Speed Testing, Surface Mount Interconnection and Telecommunication applications.

Conn (#1)

SMPM (F)

Body (#1)

Straight

Coupling (#1)

Push-ON

Termination (#1)

Solder

Conn (#2)

2.92mm (M)

Body (#2)

Straight

Coupling (#2)

Threaded

Termination (#2)

Solder

Series (Cable Type)

SMPM Cable Assemblies

Insertion Loss

1.46 dB / 0.1 meter @ 40 GHz

VSWR (:1)

1.50 Max @ 40 GHz

Amplitude / Phase Stability

Center Conductor

Shielding Effectiveness

Voltage Withstanding

Cable Diameter

1.53 mm

Operating Temp.

-55 ~ +125 ℃
Non-adhesive shrink tube

Remark 1

Remark 2

Remark 3
