SMP Cable Assemblies Φ.047 Cable types (Flexible, Semi-Rigid, Semi-Flexible)

Part No: FX047-PF8PM7-6inch

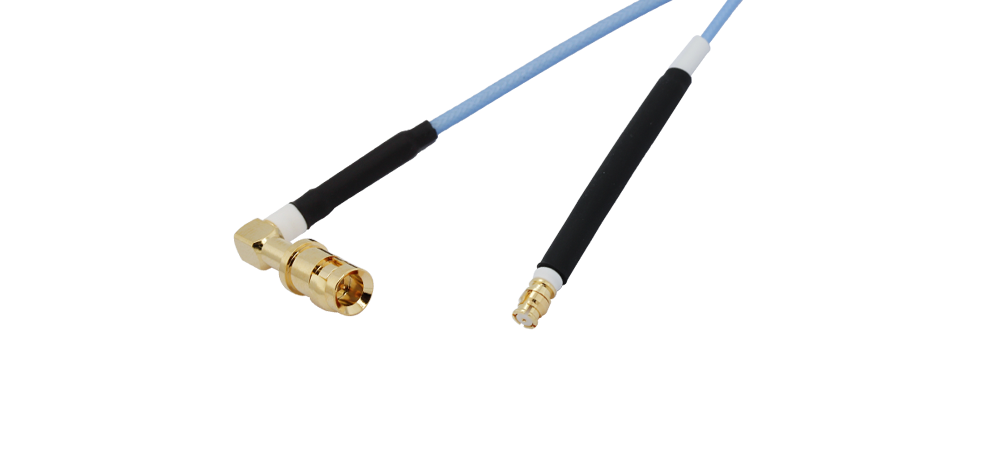

FX047 Cable Assembly, 18 GHz, SMP(F), SMP(M), 6inch

  • Withwave offers High Performance Cable Assemblies with 0.047’’cable diameter (Flexible, Semi-Rigid & Semi-Flexible) for various kinds of interconnection solutions such as High Speed Testing, Short range and Telecommunication applications.

Conn (#1)

SMP (F)

Body (#1)

Straight

Coupling (#1)

Push-ON

Termination (#1)

Solder

Conn (#2)

SMP (M)

Body (#2)

Right Angle

Coupling (#2)

Push-ON

Termination (#2)

Solder

Series (Cable Type)

SMP Cable Assemblies

Insertion Loss

VSWR (:1)

Amplitude / Phase Stability

Center Conductor

Shielding Effectiveness

<-90 dB

Voltage Withstanding

Cable Diameter

1.53 mm

Operating Temp.

-55 ~ +125 ℃
Non-adhesive shrink tube

Remark 1

Remark 2

Remark 3
