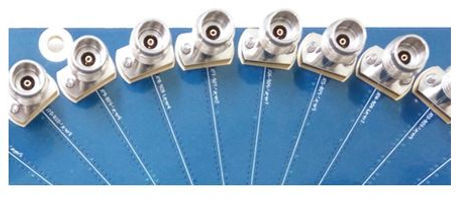

Vertical Launch Connectors

WithWave's Vertical Launch Connectors are specially designed for solderless vertical PCB launch on test & measurement board.
These connectors have excellent electrical transition performance up to 26.5 GHz, 40 GHz, 50 GHz,
67 GHz, 110 GHz & 145 GHz
as well as reduce installation time by eliminating soldering.

Vertical Launch Connector
Vertical Launch Connector

Standard Contact

Soft  Contact

Features

-DC to 26.5 GHz(SMA), 40 GHz(2.92 mm) ,50 GHz(2.4 mm), 67 GHz(1.85 mm), 110 GHz(1.0 mm), 145 GHz(0.8 mm)

-SMA, 2.92 mm, 2.4 mm, 1.85 mm, 1.0 mm & 0.8 mm type (Female, Male)

-Excellent Vertical transition (VSWR)

    SMA, 2.92 mm, 2.4 mm : < 1.3

    1.85 & 1.0 mm : < 1.6

    0.8 mm : < 2.0

-Easy & Solderless Installation on designed substrate

Application

- Test and measurement

- High speed Digital Test Boards

- Test and Characterization Boards



Vertical Launch Connector_withwave

Design Assistance
- 3D Model for Mechanical Layout(STEP file)
- ANSYS HFSS models (version 17.0 or newer) for 3D EM(Electromagnetic) Simulation

Vertical Launch Connector_withwave

Click on the datasheet  !

Vertical Launch Connectors

Vertical Launch Connectors .png

Version :241101_ver9.0

Soft Contact Vertical Launch Connectors

Vertical Launch Connector

Version :230601_ver1.0
